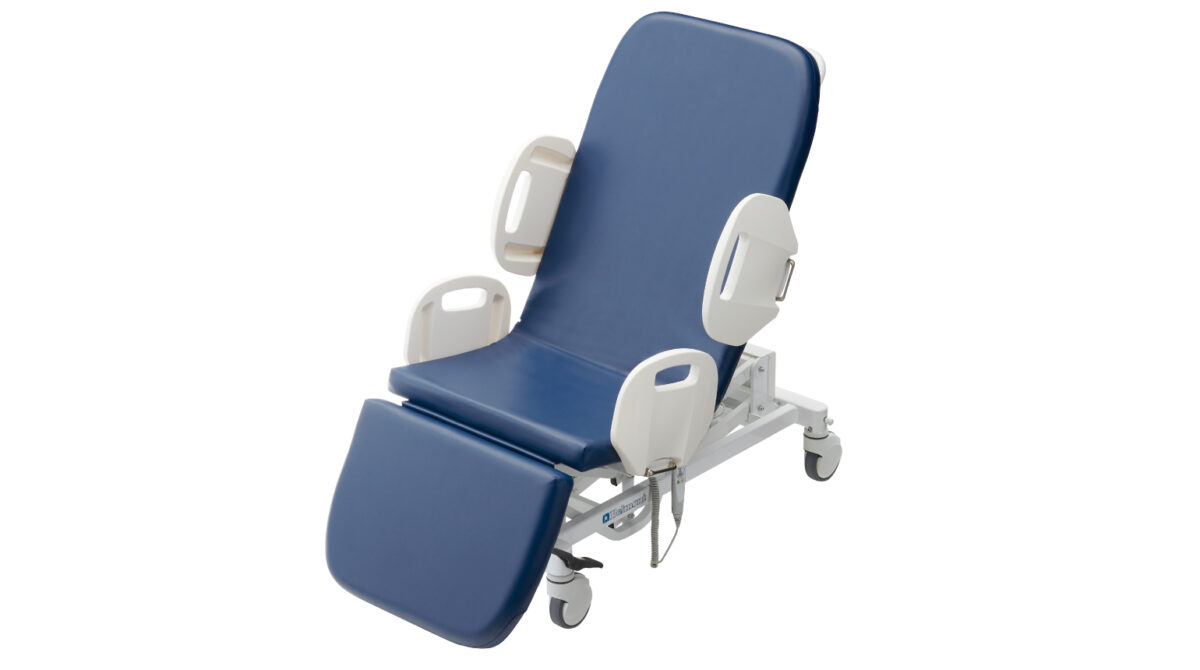

ENDOSCOPIC INSPECTION TABLEBelflit SERIES
Belflit supports the entire process of endoscopy, including sedation, from preliminary treatment to endoscopic inspection or treatment to patient transport to recovery.
Belflit allows easy inspection/treatment and transport for medical providers while it enables a less stressful posture for patients during the inspection.
The table offers easy transport from the endoscopic inspection room to the recovery room to each patient’s room as it “flits,” moving swiftly and lightly.
Line-up [standard / compact / flat]
The standard version allows the operator to raise and recline the backrest manually. The well-balanced base design enables a more stable operation.
The compact version allows chair positioning by bending the leg rest.
The flat version is designed to work flat and achieve cost effectiveness.
STANDARD VERSION

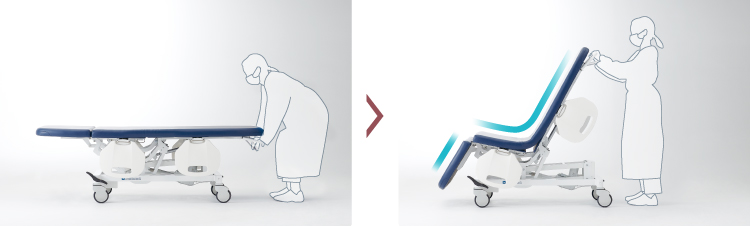

Easy Reclining Operation
The gas cylinder assists easy operation.
Thanks to the anti-skid integrated mattress, raising the backrest allows the patient’s buttocks to sink into the mattress, preventing the patient from sliding.

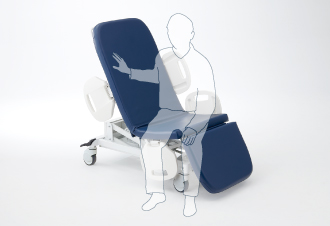

Beach Chair Position
Reclining angle can be adjusted freely. The patient can lean back against the raised backrest with legs stretched out.
Integrated Mattress
The backrest and leg rest are integrated into one mattress, ensuring easy cleaning.
COMPACT VERSION
Space Saving Design
Chair positioning ensures space saving operation.
Accessible Position
Bending the leg rest allows smooth access from the side. Additionally, The chair position enables patients to transfer onto and off of the table from a wheelchair.
Quick Reclining Operation
The leg rest operates in conjunction with the backrest while the gas cylinder assists easy operation. Thanks to the anti-skid integrated mattress, raising the backrest allows the patient’s buttocks to sink into the mattress, preventing the patient from sliding.
FLAT VERSION
Transport Grip
A handle on the head side allows you to easily transport the table.
Common Features

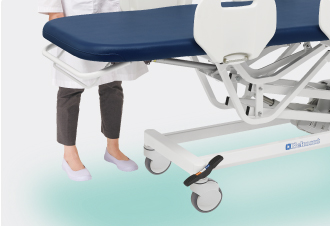

Ample Space for Legroom
The table base is designed to ensure ample space for legroom, which enables easy installation of the foot switches for devices such as an electric knife.

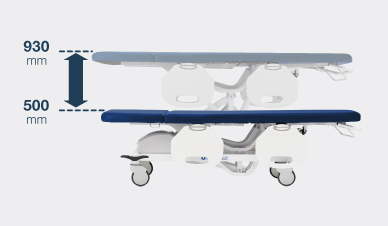

Accessible Lifting Function
In addition to the table lifting switch, two programed switches for two settings are available.
Hand Controller with Two Programmed Switch for Two Settings.
There is a holder at the side of the table for easy storage of the hand controller.
Rotatable Side Fence
The rotatable side fences save space during operation. When not in use, they can be stored inside the edge of the table, which provides easy accessibility during inspection or when transferring the patient onto or off of the table.
Side Fence for OneHanded Operation
The side fences can be operated with one hand. When moved to the use or storage position, they are automatically locked by releasing the hand. (They cannot be unlocked even when pushed from the inside.)
Comfortable Mattress
Provides soft and comfortable cushioning

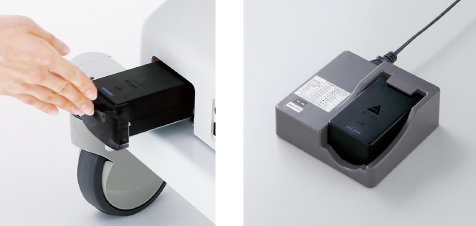

Lithium-ion Battery
A small lithium-ion battery with short charging time and long usage time is incorporated. The table moves up and down approximately 100 times on a single charge (when new). The audible alarm and LED indicator notify when the battery is low. This detachable battery pack allows easy replacement or charging.

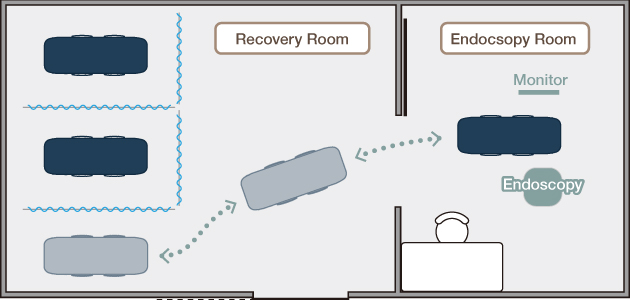

Layout Sample
Layout Sample

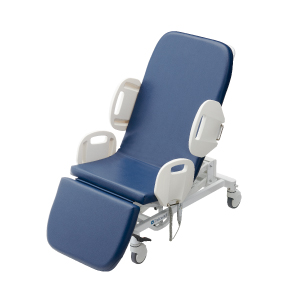

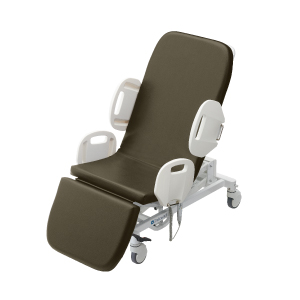

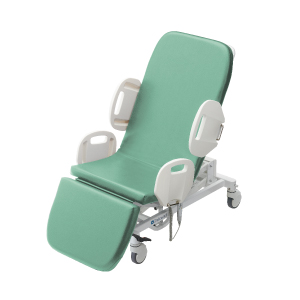

Leather Color Selection
ES23 (Standard)
ALDO BLUE
ES11
GREEN TEA
ES15
LIGHT GREEN
ES16
PURPLE BLUE

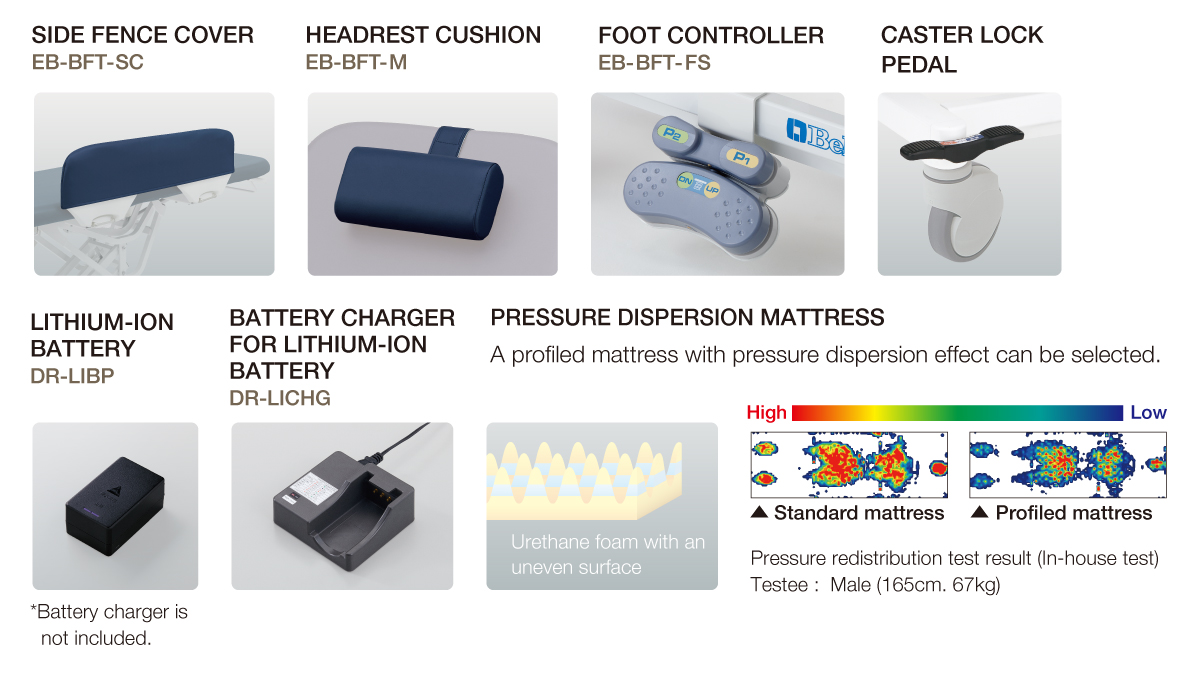

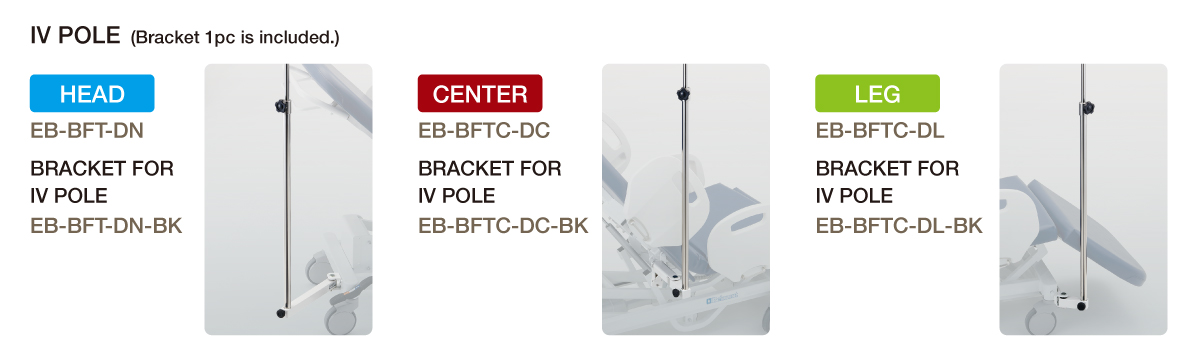

Common Options
Options [STANDARD / FLAT VERSION]
Options [COMPACT VERSION]
Product Specifications
| Version code | EB-BFTN (Standard version) EB-BFTC(Compact version) EB-BFTF(Flat version) |
| Tabletop | 650mm×1850mm |
| Table height range | 500mm-930mm (Electric motor) |
| Side fence | Rotatable & retractable |

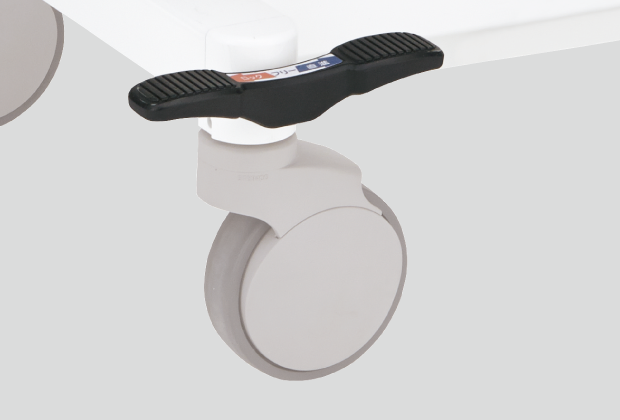

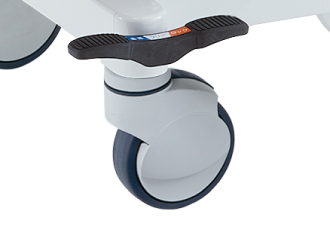

| Castor | Switching system of straight lock, 4 wheels lock and 4 wheels unlock |
| Electrical rating | DC21.6V 130VA |
| Product weight | 80kg (Standard version) 85kg (Compact version) 75kg (Flat version) |
| Standard accessories | Hand controller, Battery pack, Charger |

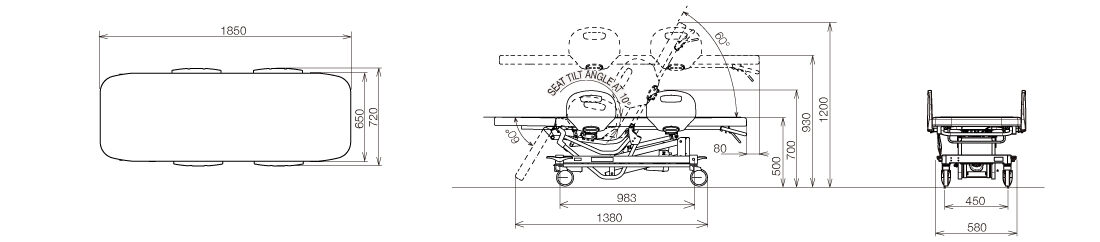

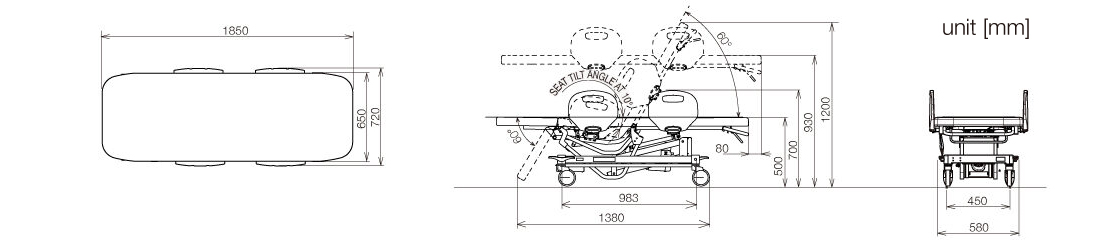

Dimension
BELFLIT Series
