OPHTHALMIC SURGERY CHAIRMEPRO V
OPHTHALMIC SURGERY CHAIR | MEPRO 5
The Chair-type Ophthalmic Operating Table MEPRO Series Has Evolved Along with the Development of Ophthalmic Surgery.
This chair-type ophthalmic operating table is designed to make it easy for doctors, staff, and patients to get on and off the table and maintain their posture during surgery in the ever-evolving field of ophthalmic surgery.

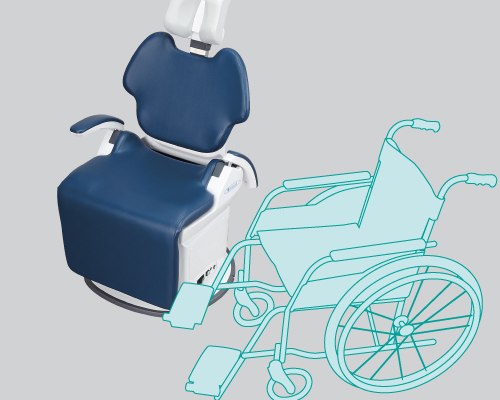

Reclining Mechanism that Makes It Easy for the Patient to Sit and
for the Doctor to Perform the Procedure
A chair-type operating table with the lowest position of 485 mm for patient’s sitting comfort. Converts to surgical position with a push of a programmable setting switch (PRESET switch). The height can also be adjusted within the 285 mm lifting stroke range. After surgery, the patient can be smoothly converted to a chair position with a single push of the programmable return switch(AUTO RETURN switch). Smooth and quiet operation due to hydraulic mechanism.
Sliding Mechanism for Headrests to Absorb Differences in Patient Height
The headrest can be extended and retracted by foot control operation to absorb differences in patient height.

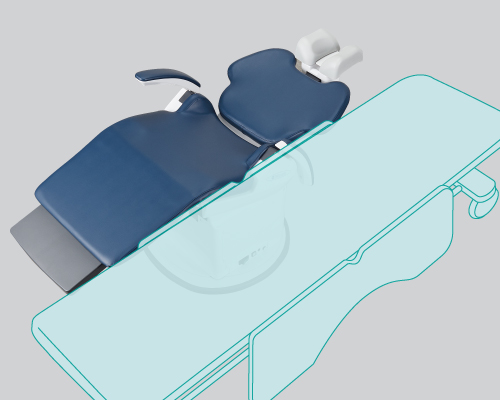

Chair-type Operating Table Provides Ample Room for Doctor’s Legs

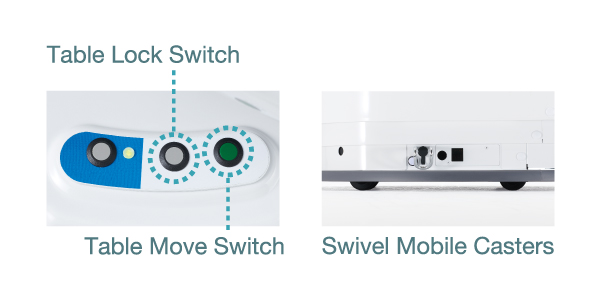

The chair-type operating table with casters stored inside the main body allows for more leg room for the doctor.

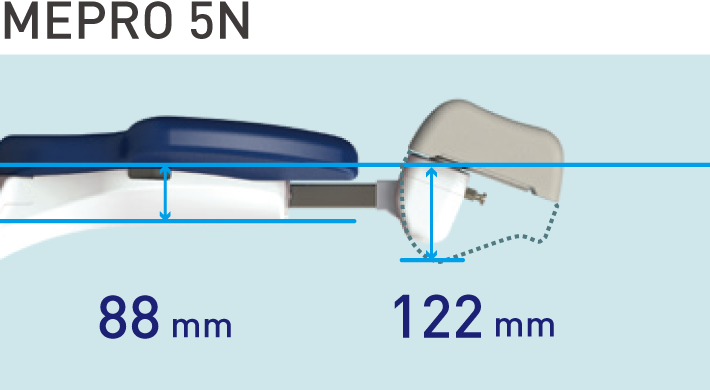

In addition, MEPRO 5 has a motorized headrest elevation and tilt mechanism, making the backrest and headrest thinner than our previous products. This further reduces knee interference during the procedure. The slim and flat backrest provides a more comfortable surgical posture.

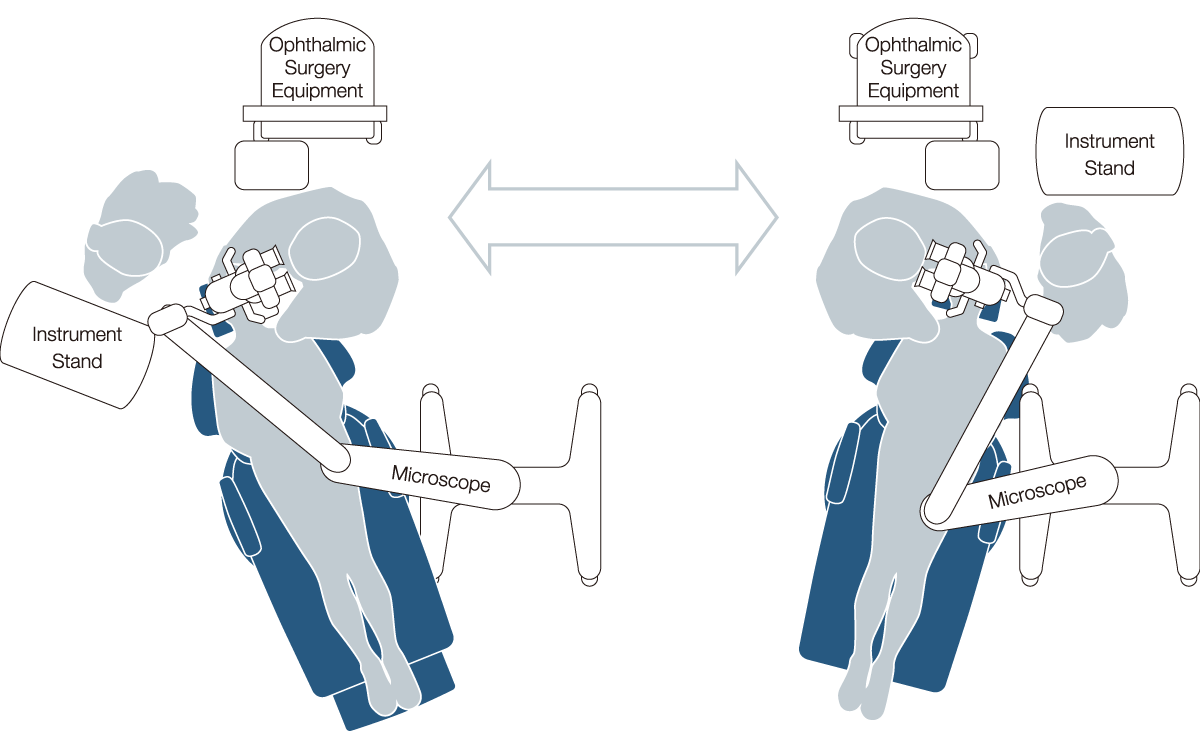

Layout Can Be Changed More Efficiently for Surgery on Either the Left or Right Eye.
Equipped with an axis rotation mechanism, layout changes can be made more smoothly according to the positioning of the left and right eye.
When unlocked, the table can rotate around the elevation mechanism(Manual operation) . Rotation can be locked at any position within the range.
Rechargeable Foot Control
The foot control is rechargeable; one charge provides approximately 40 days of use (when new). When the battery charge is low, the remaining battery charge indicator lamp informs the user of the remaining charge level in four levels. Even in the unlikely event that the battery charge runs out, it can be used as a wired foot control by connecting the connection cable. Connecting the cable starts charging the foot control (the connecting cable can be stored on the back of the foot control).
Color Selection
Options
Wrist Rest | DR-150R
The wrist rest is designed to work with the Headrest Elevation Mechanism for mild round-back patients, reducing the need for height adjustment. (Compared to the previous product)
Upper-limb Rest | DR-150AM
Because it is attached to the side rail, it can be adjusted to accommodate the patient’s physical differences.
Product Specifications
Lifting and Lowering the Chair | 485-770 mm by Electrohydraulic System |
Backrest Angle Range | 0-80° by Electrohydraulic System |
Extending and Retracting the Headrest | 170 mm by Electrohydraulic System |
Bending Forward and Backward the Headrest | 35° by Electrohydraulic System |
Electrical Rating | AC110/120/220/230/240 V, 50/60 Hz |
Product Weight | 155.6 kg |
